Technical Air System
GZ80.01

Technical Air System

Our experts are ready to offer you the most suitable solutions.

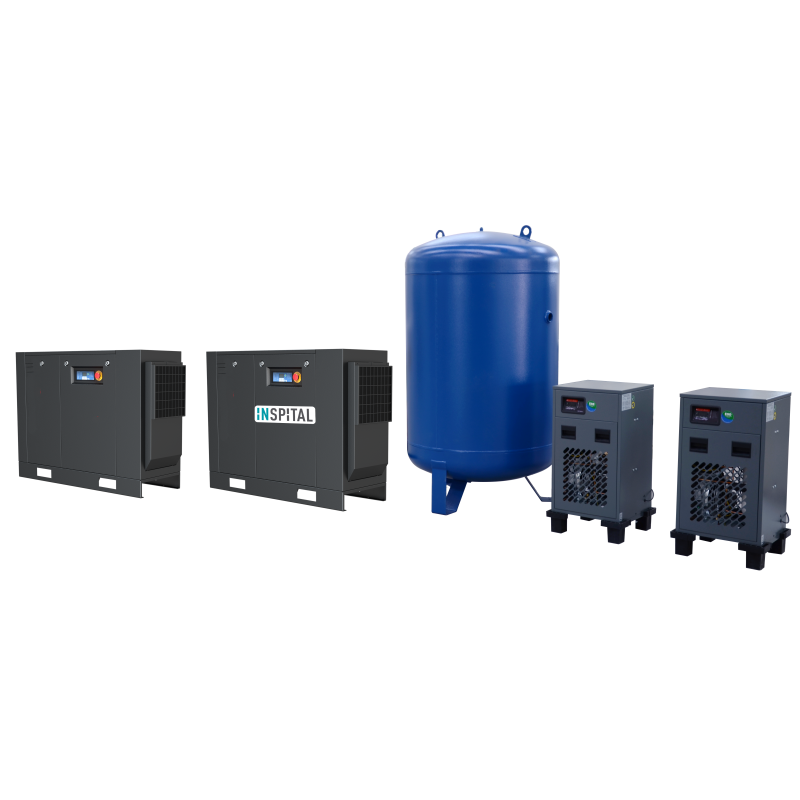

Technical Air Plant is designed to provide a continuous supply of medical quality air. Technical Air is mainly supplied via a medical gas pipeline system where the air is generated by compressors, dryers and filtration system. INSPITAL Technical Air plant with rotary screw compressors can be used in wide capacity range. Compressor capacities varies from 2.2 kW to 37 kW. High quality screw blocks with perfect lubrication systems enable continuous operation, stability and reliability. At technical air solutions offers compressed air dryers with +3-5 C° dew point temperature. INSPITAL can offer different capacities according to hospital consumption and bed capacity.

Model No Compressor Capacity Compressor Type Dryer Capacity Tank Capacity Operating Temperature Bed Quantitiy
GZ80.01 1x39 m3/h Screw Type 1x50 m³/h 300 L (+10) - (+50) C° 20-50
GZ80.02 2x39 m3/h Screw Type 1x50 m³/h 300 L (+10) - (+50) C° 20-50
GZ80.03 1x84 m3/h Screw Type 1x87 m³/h 500 L (+10) - (+50) C° 50-100
GZ80.04 2x84 m3/h Screw Type 1x87 m³/h 500 L (+10) - (+50) C° 50-100
GZ80.05 1x117 m3/h Screw Type 1x130 m³/h 1000 L (+10) - (+50) C° 100-150
GZ80.06 2x117 m3/h Screw Type 2x130 m³/h 1000 L (+10) - (+50) C° 100-150
GZ80.07 1x168 m3/h Screw Type 1x170 m³/h 1500 L (+10) - (+50) C° 150-200
GZ80.08 2x168 m3/h Screw Type 2x170 m³/h 1500 L (+10) - (+50) C° 150-200
GZ80.09 1x210 m3/h Screw Type 1x283 m³/h 2X1000 L (+10) - (+50) C° 200-250
GZ80.10 2x210 m3/h Screw Type 2x283 m³/h 2X1000 L (+10) - (+50) C° 200-250
