GZ81.01

Oxygen Production Systems

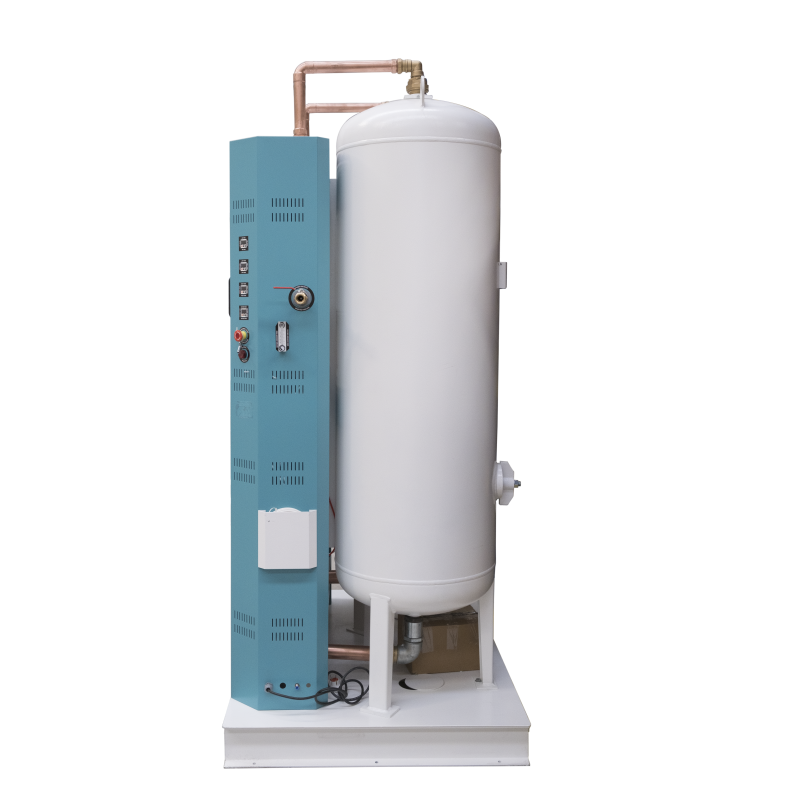

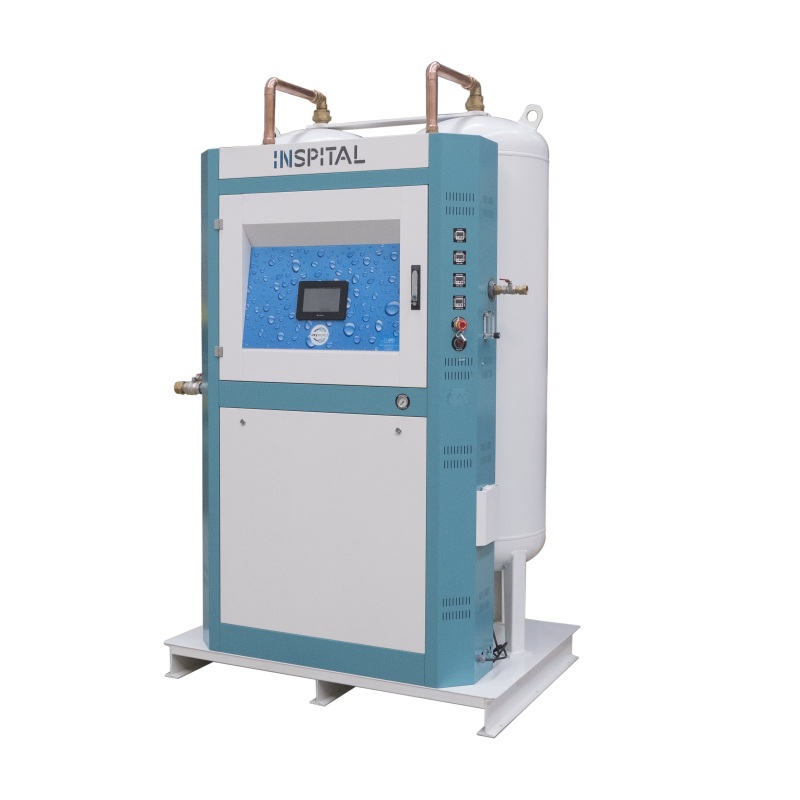

Inspital Oxygen Generators athat allows on-site production of oxygen. This helps hospitals to supply oxygen from their own automated system independently. These systems are generally combined with cylinder systems for instant back up.


Classification
Inspital Oxygen Production Systems are designed and manufactured in compliance with HTM 02-01, HTM 2022, MDD 93/42/EEC, EN 13485 standards.

Our experts are ready to offer you the most suitable solutions.

Features:

  • Continous oxygen production
  • Highly reliable efficient PSA system
  • Inspital Oxygen Generators deliver oxygen in a purity up t o between 93%±3% at flow rate from 3 to 100 m3/h.
  • Saving space
  • Return on Investment period 12-24 months
  • Easy to assemble and use
  • Automatic operation
  • If maintenance of system companents are done in line with instructions generator can operate up to 10 years
  • Less energy demand fr om hospital s taffs.
  • Easy to monitor purity on simple designed screen.
  • No safety risks of handling of high pressure cylinders

NOTE: Rightful capacity depends on the quantitties and types of the rooms of the hospital.

Standart Equipment

  • Air Screw type Compressor
  • Air Dryer
  • 02 generator
  • Air and oxygen Tanks
  • Filters



Model No O2 Generator Capacity Compressor
Capacity
(l/min)
Dryer
Capacity
(l/min)
Oxygen Tank Capacity (l/min)
m3/h l/min 90% 92% 94% 96%
GZ81.01 3 50 560 1450 54 51 48 45
GZ81.02 6 100 1150 2830 108  102 96 90
GZ81.03 9 150 1700 3300 162 153 144 135
GZ81.04 12 200 2250 4720 216 204 192 180
GZ81.05 15 250 2700 5900 270 255 240 225
GZ81.06 22 367 3800 7800 396 374 352 330
GZ81.07 24 400 4600 9800 432 408 384 360
GZ81.08 28 467 5200 9800 504 476 448 420
GZ81.09 38 633 6400 13800 684 646 608 570
GZ81.10 46 767 9600 21800 828 782 736 690
GZ81.11 54 900 12400 21800 972 918 864 810
GZ81.12 62 1033 15800 27100 1116 1054 992 930
GZ81.13 70 1167 15800 36700 1260 1190 1120 1050
GZ81.14 78 1300 15800 36700 1404 1326 1248 1170
Note: • Dryer and compressor capacities are given at atmospheric pressure at 20 °C (ISO 1217) in accordance with norms ISO 7183-8573-1 and Pneurop 6611- Class 2 @ 7 bar, 35 °C inlet
• Rightful capacity depends on the quantitties and types of the rooms of the hospital.
