Operating Table OT80.25
OT80.25
Video

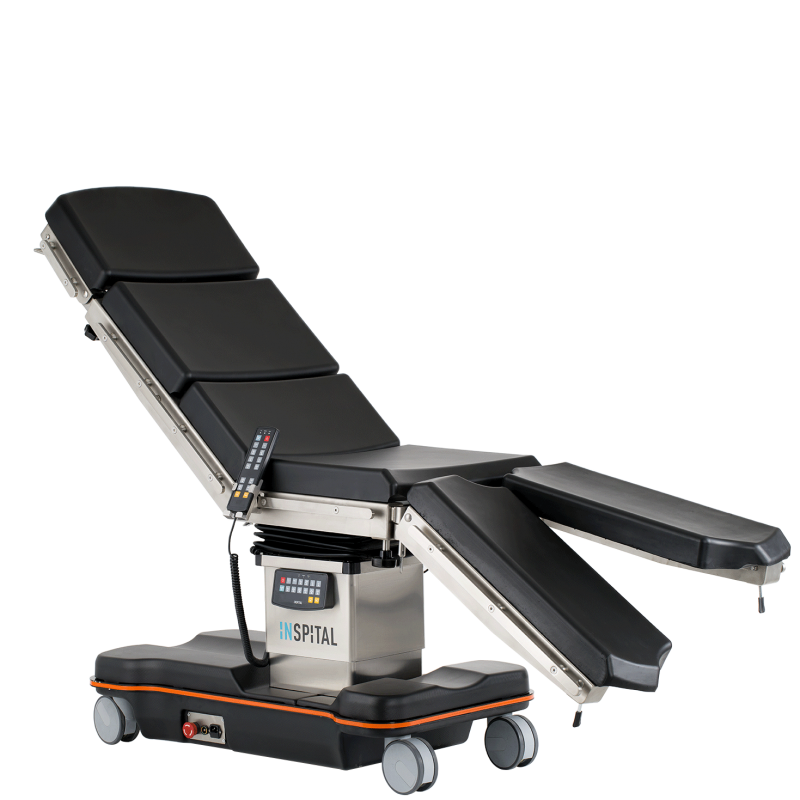

Operating Table OT80.25

The electrohydraulic system makes this model more durable and long-lasting. OT80.25 can be adjusted to different positions, equipped with different accessories and is suitable for all surgical disciplines. This operating table is equipped with a battery back-up system that easily provides 20 full movements or 1 hour of continuous operation. Durable and antibacterial PUR or Visco mattresses are available upon request for patient comfort. A kidney elevator is offered as an option on this model.

One of the most important features of operating table OT80.25 is its big wheels that provide fast transfer of the patient between operating rooms without the need for a stretcher. Besides this, OT80.25 has manual and useful brake system.

Ideal access in the surgical area

Maximum surgical area visibility with its kidney elevator, integrated on the table and adjustable up to 150° (70 mm).



Sliding feature

X-ray transparent in a wide range without disturbing the sterile environment by its longitudinal sliding table top feature of 300 mm.



Functional design

Easy to use modular design for various surgical disciplines. Durable and hygienic 316 grade stainless steel body.



Accessory attachment

Stainless steel side rails integrated on both sides of the table allow accessories to be attached without removing existing accessories.



Various mattress options

Table top made of compact material with high X-ray transparency, allowing for high quality imaging.

Visco or polyurethane mattress options that ensure patient comfort by adopting to body shape, preventing pressure sores.



Ideal access for C-arms

Full access to all table areas and radiolucent table top allows high imaging. The low table base allows easy access and approach of C-arms and surgical microscopes. Optional carbon fibre extension plate for 360° imaging available.



Robust base

The base made of break- and corrosion-resistant ABS material allows optimal foot clearance for surgeons. Easy-to-clean large castors for fast patient transfer.



Ideal mattress performance

Upholstery mattresses are designed and manufactured according to the test results of Pressure Mapping Technology.



Sophisticated operating concept

Electro-hydraulic braking system via hand control. User friendly hand switch with 7 adjustable functions. Preferred positions can be memorized. By using only one button OT80.20 can be setup to one of the previously stored positions. Table can be levelled (zero-position) by one button.



Additional control panel

Additional control panel on the column with complete functions, with emergency stop button.



Wide range of accessories

Wide range of accessories allows a variety of patient positioning for all surgical disciplines.

Accessory trolley for storage.

Technical Features
Sliding movement:  300 mm
Lateral tilt:  +20° / -20°
Back rest adjustment:  +80° / -45°
Trendelenburg:  -30° / +30°
Leg rest adjustment:  +30° / -80°
Head rest adjustment:  +30° / -90°
Flex / Reflex position:  +225° / -100°
Width x Length:  560 x 2200 mm
Height adjustment:  595 - 1035 mm
Mattress thickness:  70 mm
Castors Ø:  125 mm
Max patient weight:  360 kg
Kidney bridge:

 150° (optional, OT80.25K)

Stainless steel T-base:  -
Visco matress:  Optional, OT80.25V



Adjustments
Height: Electro-hydraulic
Back rest: Electro-hydraulic
Trendelenburg: Electro-hydraulic
Lateral tilt: Electro-hydraulic
Sliding: Electro-hydraulic
Central locking: Manual
Head rest: Manual
Leg rest: Manual
