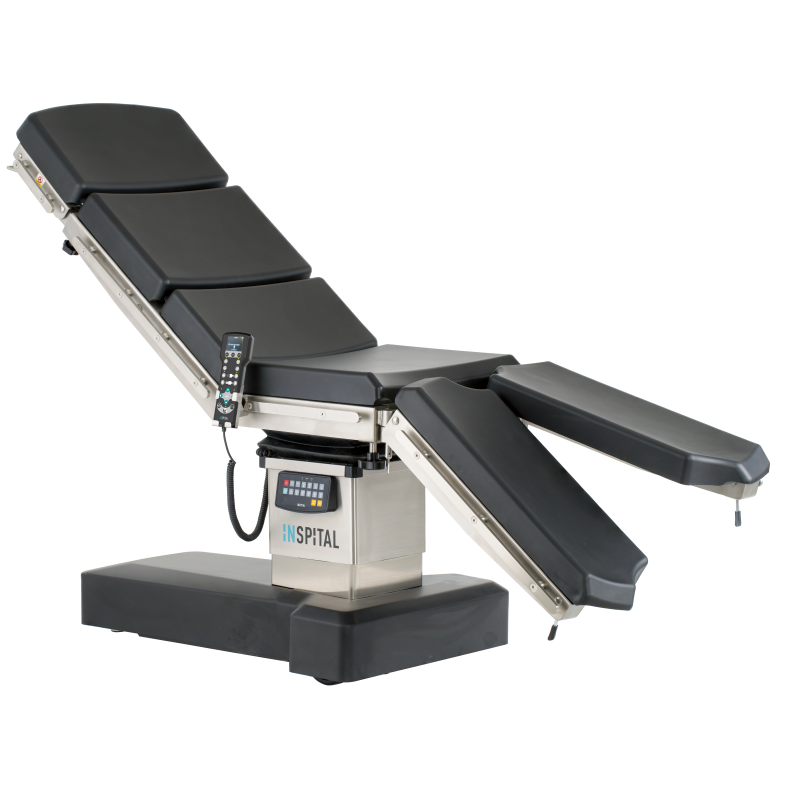

Operating Table OT80.20 NOVUS
Operating Table OT80.20 NOVUS
Operating Table OT80.20 NOVUS
Operating Table OT80.20 NOVUS

Operating Table OT80.20 NOVUS

Inspital operating tables are designed to meet all special requirements of operating theaters with its powerful and stable electro-hydraulic systems. OT80.20 Novus has wide range of accessories makes it very flexible for different surgical disciplines.

Our experts are ready to offer you the most suitable solutions.

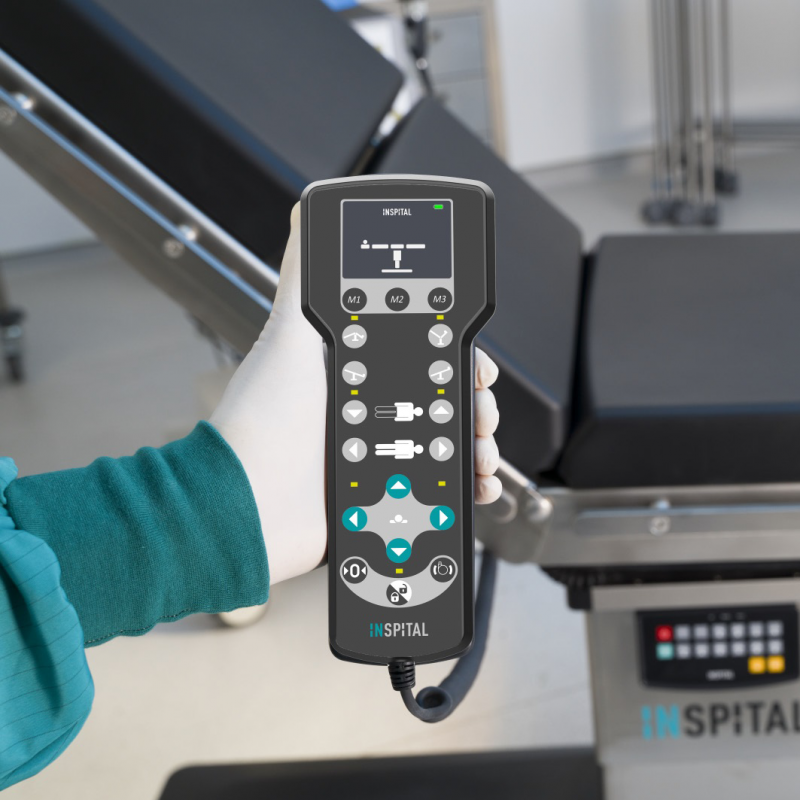

Hand Control Unit with Color LCD Display

  • Digital Screen

  • Battery level monitoring by remote control unit

  • Program memory for 3 positions

  • Key lock

  • Collision protection feature


Ideal access in the surgical area

Maximum surgical area visibility with its kidney elevator, integrated on the table and adjustable up to 150° (70 mm).


Sliding feature

X-ray transparent in a wide range without disturbing the sterile environment by its longitudinal sliding table top feature of 300 mm.


Functional design

Easy to use modular design for various surgical disciplines. Durable and hygienic 316 grade stainless steel body.


Accessory attachment

Stainless steel side rails integrated on both sides of the table allow accessories to be attached without removing existing accessories.


Various mattress options

Table top made of compact material with high X-ray transparency, allowing for high quality imaging.

Visco or polyurethane mattress options that ensure patient comfort by adopting to body shape, preventing pressure sores.


Ideal access for C-arms

Full access to all table areas and radiolucent table top allows high imaging. The low table base allows easy access and approach of C-arms and surgical microscopes. Optional carbon fibre extension plate for 360° imaging available.



The T-base provides ideal access for the surgical team and OR furniture, with hidden anti-static, medical castors.

Break and corrosion resistant ABS material or optional stainless steel T-base


Ideal mattress performance

Upholstery mattresses are designed and manufactured according to the test results of Pressure Mapping Technology.


Sophisticated operating concept

Electro-hydraulic braking system via hand control. User friendly hand control with 7 adjustable functions. Preferred positions can be memorized. By using only one button OT80.20 Novus can be setup to one of the previously stored positions. Table can be levelled (zero-position) by one button.


Additional control panel

Additional control panel on the column with complete functions, with emergency stop button.


Wide range of accessories

Wide range of accessories allows a variety of patient positioning for all surgical disciplines.

Accessory trolley for storage.


Model OT80.20N
Sliding Movement 300mm
Lateral Tilt Movement +20 / -20
Back Rest Movement +80 / -45
Tredelenburg +30
Reverse Tredelenburg -30
Leg Rest Up/Down +30 / -80
Head Rest Movement +30 / -90
Flex / Reflex Movement +225 / -100
Width x Length 560 x 2200 min
Height (min) 595 mm
Height (max) 1035 mm
Mattress Thickness 70 mm
Castors Diameter 100 mm
Max Patient Weight 360 kg / 800lbs
Kidney Surgery Position 150 deg. (optional, OT80.20NK)
Stainless Steel T-Base Optional, OT80.20NS
Visco Mattress Optional, OT80.20NV



Height Electro-hydraulic
Back Rest Electro-hydraulic
Tredelenburg Electro-hydraulic
Lateral Tilt Electro-hydraulic
Sliding  Electro-hydraulic
Central Locking Electro-hydraulic
Head Rest Manual
Leg Rest, Up/Down Manual
