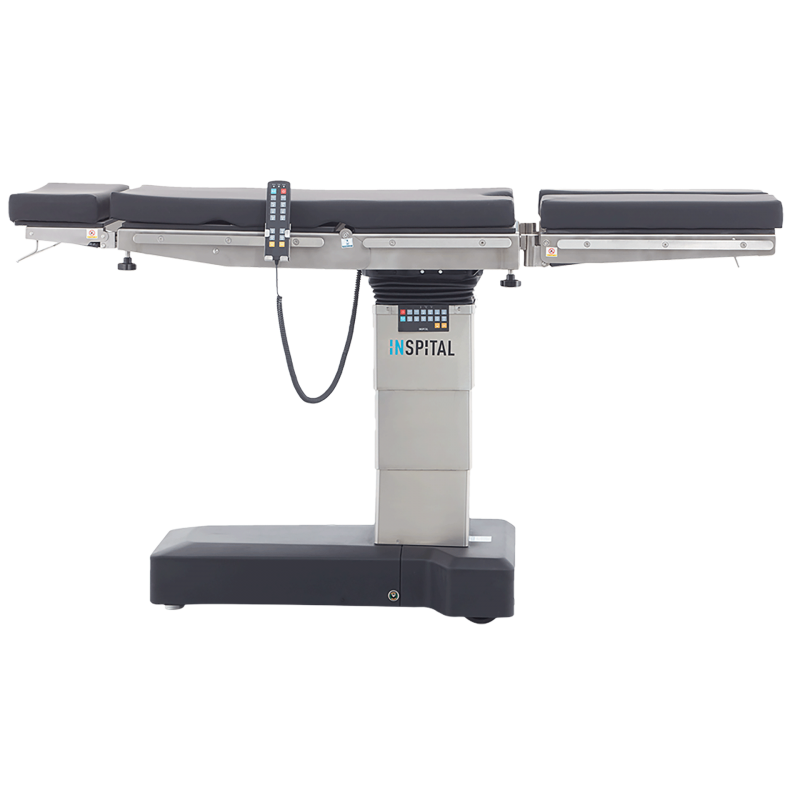

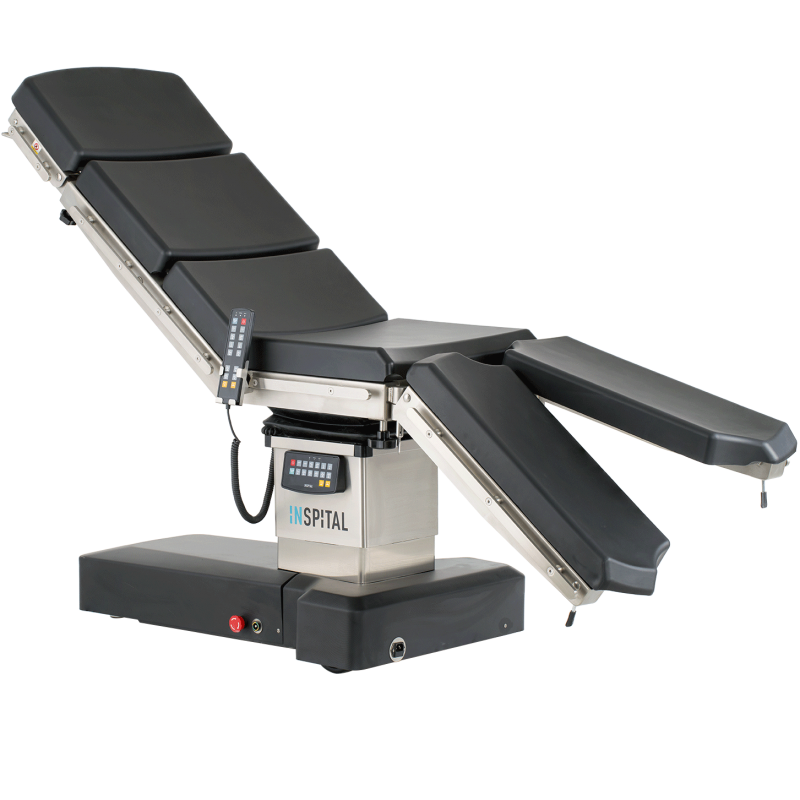

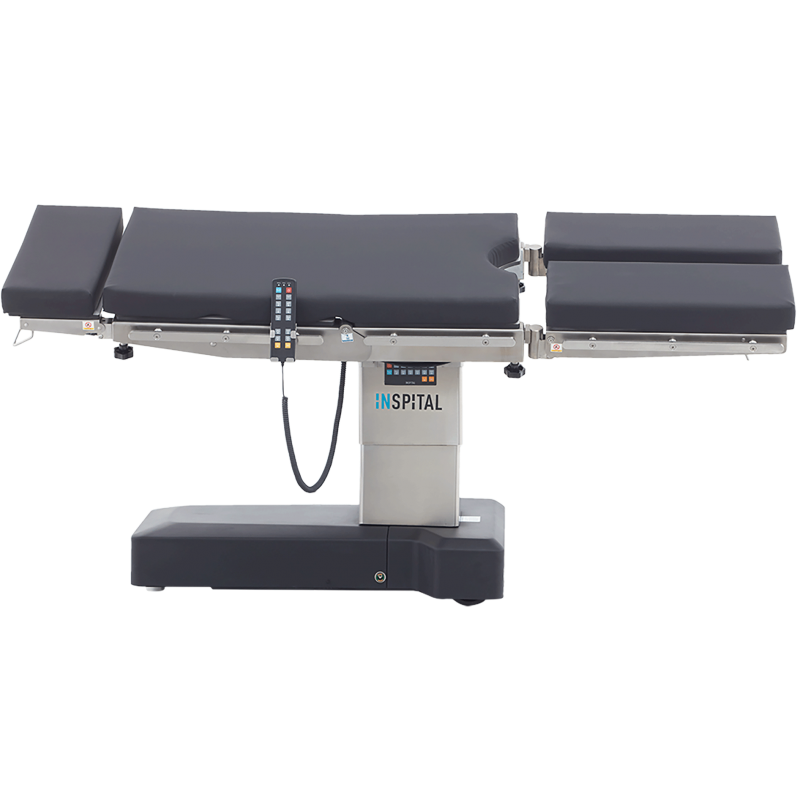

Operating Table OT80.20

Inspital operating tables are designed to meet all special requirements of operating theaters with its powerful and stable electro-hydraulic systems. Wide range of accessories makes them very flexible for different surgical disciplines.

Operating Table OT80.20 is one of the most preferred operating tables in operating rooms. This model is designed to meet all special requirements of operating theaters with its powerful and stable electro-hydraulic systems.

Ideal access in the surgical area

Maximum surgical area visibility with its kidney elevator, integrated on the table and adjustable up to 150° (70 mm).



Sliding feature

X-ray transparent in a wide range without disturbing the sterile environment by its longitudinal sliding table top feature of 300 mm.



Functional design

Easy to use modular design for various surgical disciplines. Durable and hygienic 316 grade stainless steel body.



Accessory attachment

Stainless steel side rails integrated on both sides of the table allow accessories to be attached without removing existing accessories.



Various mattress options

Table top made of compact material with high X-ray transparency, allowing for high quality imaging.

Visco or polyurethane mattress options that ensure patient comfort by adopting to body shape, preventing pressure sores.



Ideal access for C-arms

Full access to all table areas and radiolucent table top allows high imaging. The low table base allows easy access and approach of C-arms and surgical microscopes. Optional carbon fibre extension plate for 360° imaging available.



T-base

The T-base provides ideal access for the surgical team and OR furniture, with hidden anti-static, medical castors.

Break and corrosion resistant ABS material or optional stainless steel T-base



Ideal mattress performance

Upholstery mattresses are designed and manufactured according to the test results of Pressure Mapping Technology.



Sophisticated operating concept

Electro-hydraulic braking system via hand control. User friendly hand control with 7 adjustable functions. Preferred positions can be memorized. By using only one button OT80.20 can be setup to one of the previously stored positions. Table can be levelled (zero-position) by one button.



Additional control panel

Additional control panel on the column with complete functions, with emergency stop button.



Wide range of accessories

Wide range of accessories allows a variety of patient positioning for all surgical disciplines.

Accessory trolley for storage.



Technical Features
Sliding movement:  300 mm
Lateral tilt:  +20° / -20°

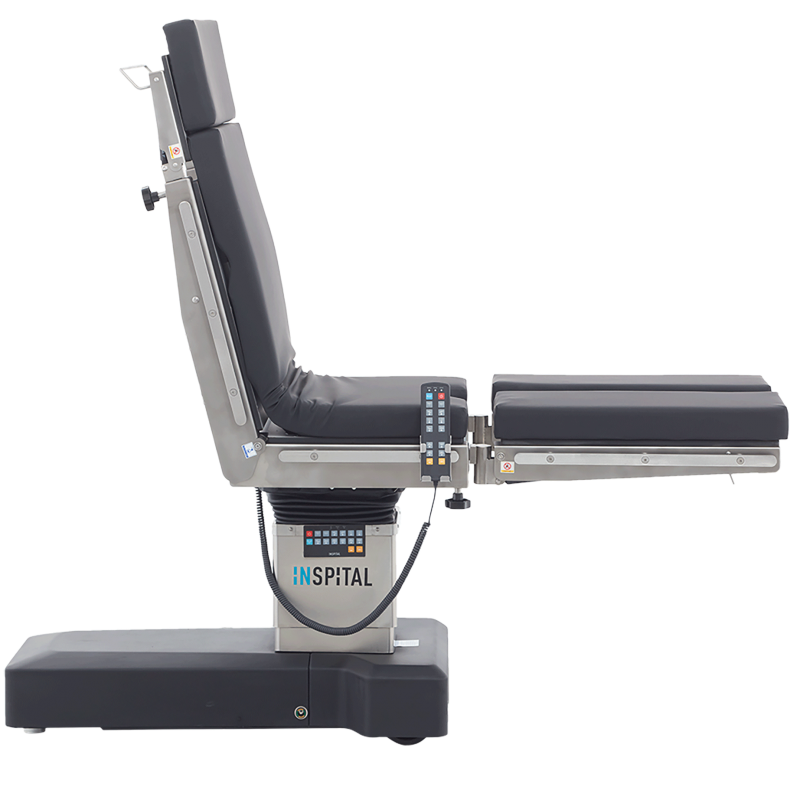

Back rest adjustment:  +80° / -45°

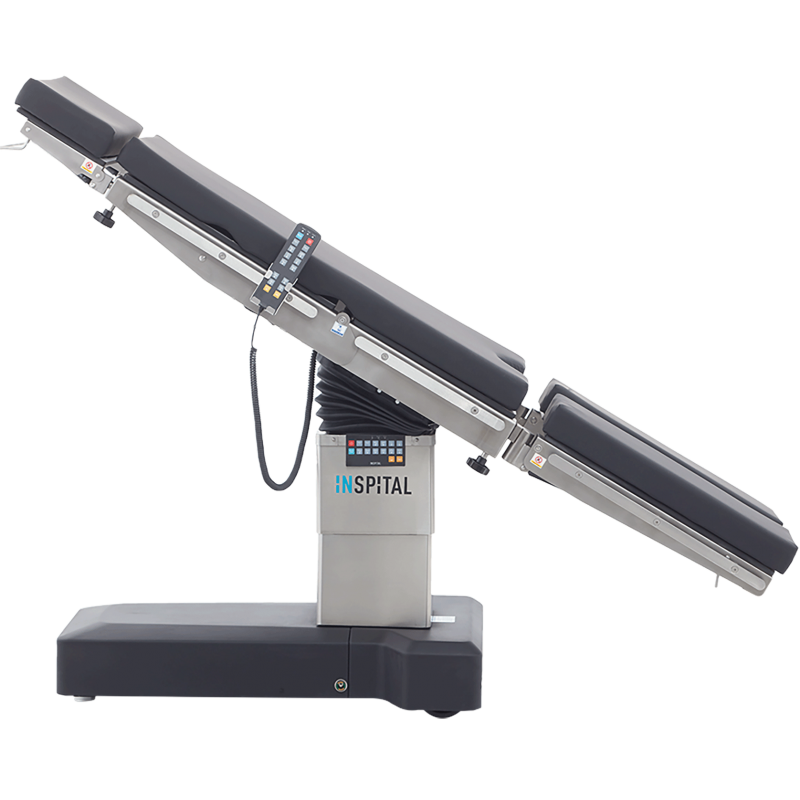

Trendelenburg:  -30° / +30°
Leg rest adjustment:  +30° / -80°
Head rest adjustment:  +30° / -90°

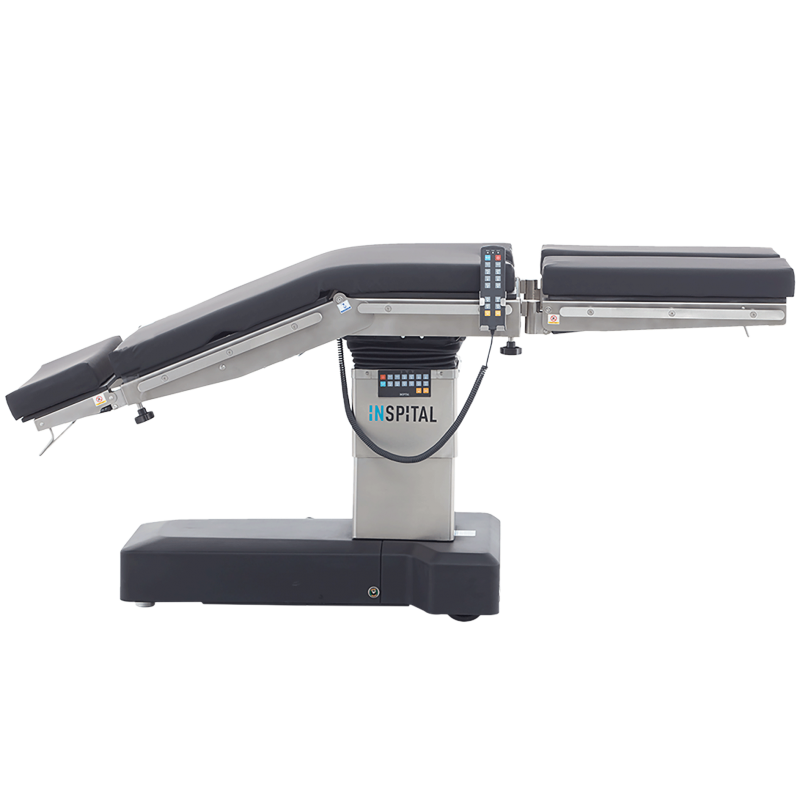

Flex / Reflex position:  +225° / -100°
Width x Length:  560 x 2200 mm
Height adjustment:  595 - 1035 mm
Mattress thickness:  70 mm
Castors Ø:  100 mm
Max. patient weight:  360 kg
Kidney bridge:  150° (optional, OT80.20K)
Stainless steel T-base:  Optional, OT80.20S
Visco mattress:  Optional, OT80.20V



Adjustments
Height:  Electro-hydraulic
Back rest:  Electro-hydraulic
Trendelenburg:  Electro-hydraulic
Lateral tilt:  Electro-hydraulic
Sliding:  Electro-hydraulic
Central locking:  Electro-hydraulic
Head rest:  Manual
Leg rest:  Manual
