Mobile Imaging Table OT80.30

Inspital imaging tables are designed to provide excellent X-ray transparency with their lightweight carbon fibre tabletop, while maintaining high load-bearing capacity. They offer maximum imaging quality at low radiation and ideal solutions for surgical and interventional radiology. A visco pad ensures a high level of patient comfort.

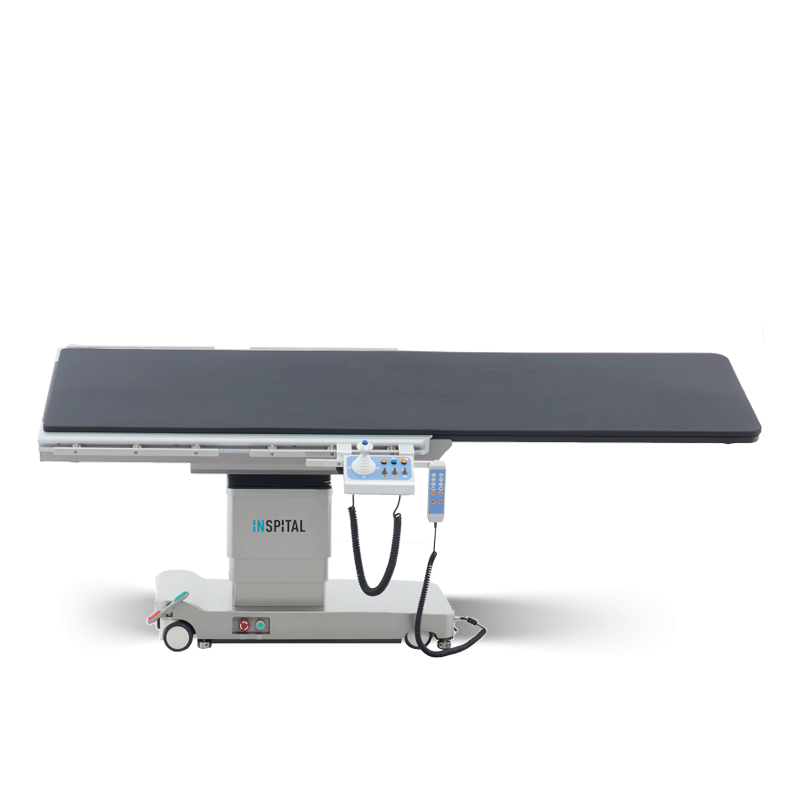

The mobile imaging table OT80.30 has been designed to achieve higher image quality in combination with X-ray devices and C-arms.

Floating carbon fibre table top

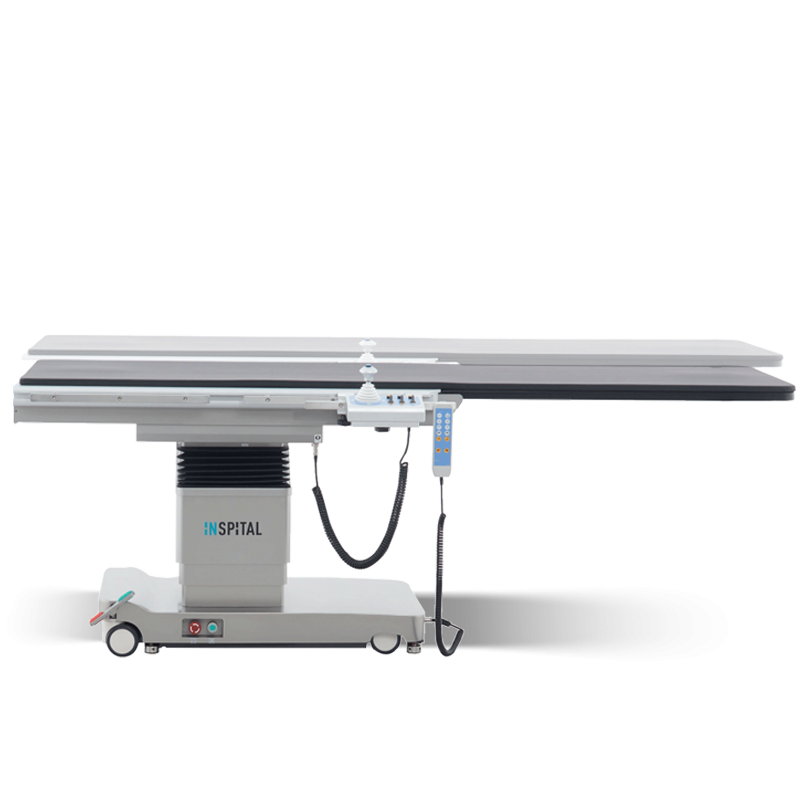

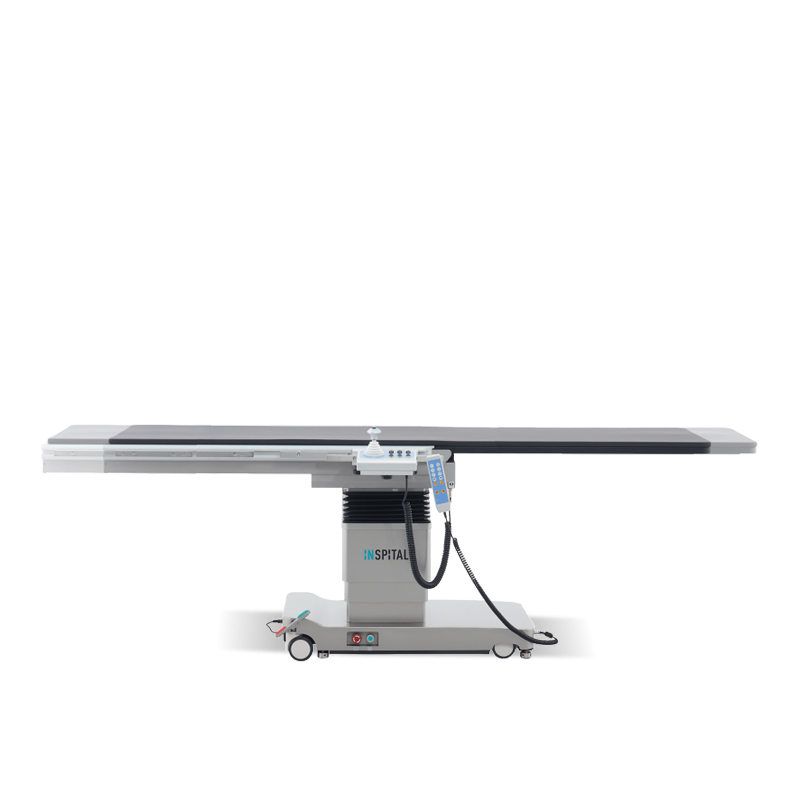

Floating carbon fibre tabletop with longitudinal sliding of 790 mm and transversal of 215 mm or bidirectional by a precision joystick.



Radiolucent factor

Radiolucent factor of the carbon table top at ≤ 0.43 mm AL equivalent. The low X-ray absorption enables clear imaging, reduction of radiation dose and thus ensures lower radiation exposure for patients and users!
This also helps to extend the life of X-ray unit's spheroid tube.



360° imaging

360° imaging capability at a length of 1,100 mm ensures ideal imaging for various applications and surgeries.



Compatibility & design

Compatible with digital and conventional X-ray units.

The low base, which allows an ideal C-arm access, and column cover are made of high quality, durable stainless steel. Easy mobility due to 4 castors.



Various adjustments

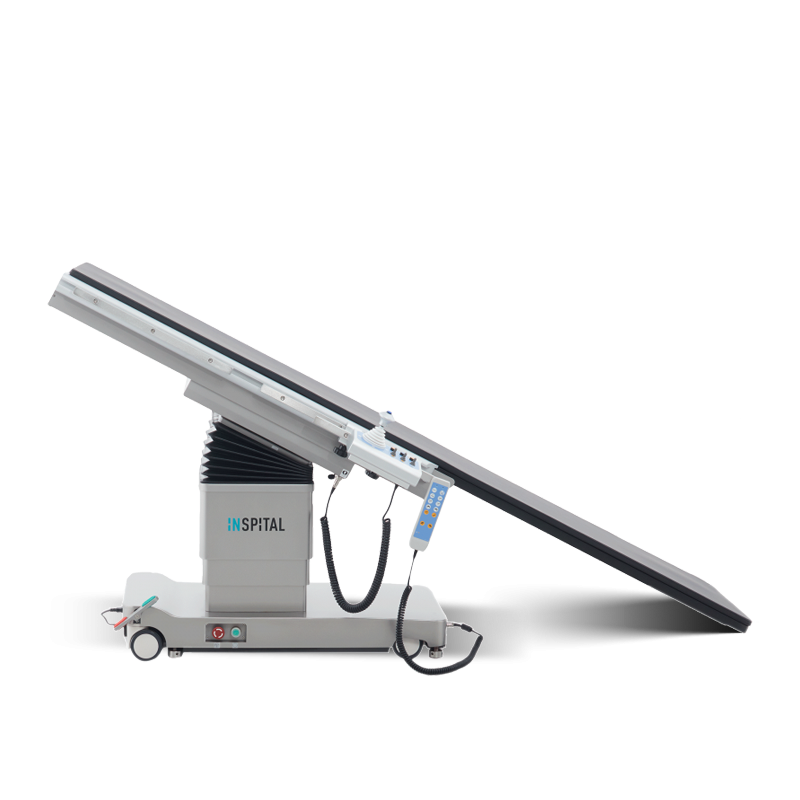

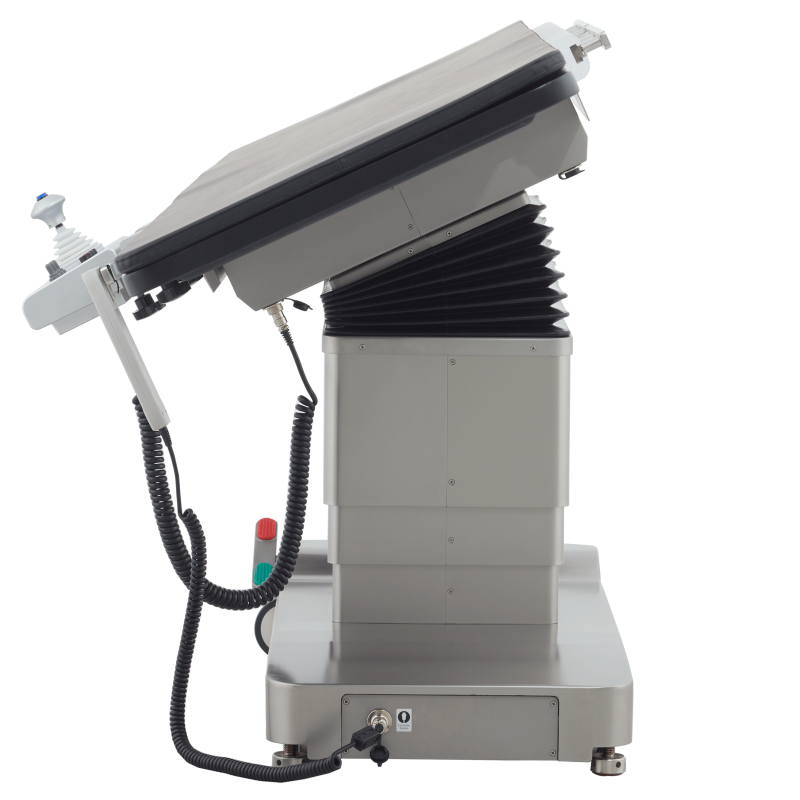

Height adjustment, tilting, Trendelenburg and smooth longitudinal and transversal sliding are controlled via a wired hand switch or a control panel with a precision joystick assure and ideal patient positioning.



Technical Features
Width x Length:  620 x 2450 mm
Height adjustment:  750 - 1140 mm
Length of imaging:  1860 mm
Longitudinal slide:  790 mm
Lateral slide:  215 mm
Trendelenburg:  -18° / +18°
Lateral tilt:  -15° / +15°
Max. patient weight:  200 kg
