Manifold System with Double Regulator
GZ71.20

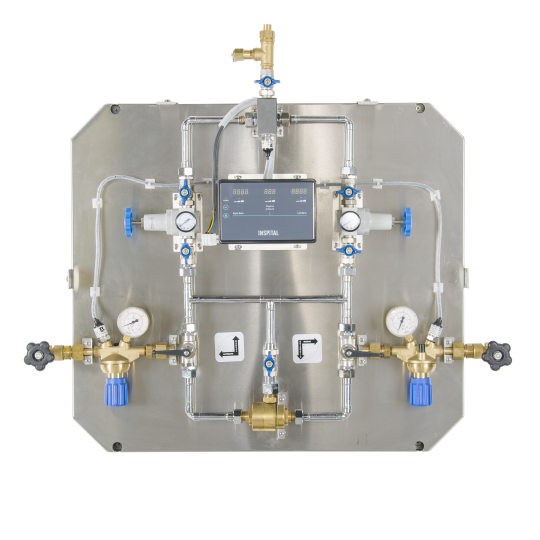

Manifold System with Double Regulator

INSPITAL Automatic Changeover Manifold is designed to provide a continuous supply of Oxygen, Nitrous Oxide, Carbon Dioxide in healthcare facilities. The manifold consists of two banks of cylinders located on each side of the pressure control assembly. These pressured gases are used in Operation Theatres, Intensive Care Units, Neonatal Care Units, Emergency Rooms and Patient Rooms. Automatic Changeover Manifold is designed and manufactured in compliance with HTM 02-01, MDD 93/42/EEC, EN ISO 7396-1 and ISO 13485 standards.

Our experts are ready to offer you the most suitable solutions.

Features

  •  Special black ABS cover protection against evironmental factors
  • Designed to ensure continuous and accurate gas supply
  • It is designed according to the principle of continuous transfer functionality. So during exchange of the cylinders, gas supply won’t be interrupted.
  • Alternative station capacities depending on the type of gas used and the distance
  • Fully removable cover for easy access to internal components
  • Easy to reach alarm panel connections



  • Manifold Type: 2 stage, 2 regulators
  • Inlet dia : 1/2”
  • Outlet dia : 22 mm
  • Outlet pressure: 4 - 5 bar
  • Automation: Fully Automatic

Optional Accessories

  • Emergency reserve manifold
  • Heater Kits
  • Isolation valve and test gas outlet
  • Spare cylinder racks
Explanation Model No
W / o alarm 40 m3/h GZ71.20
With alarm 40 m3/h GZ71.21
W / o alarm 150 m3/h GZ71.22
With alarm 150 m3/h GZ71.23
