Flowmeters
FM20.11

Flowmeters

Our experts are ready to offer you the most suitable solutions.

Inspital offers different models of flowmeters according to their gas flow scale, connection types and humidity jars that can be used with oxygen. Flowmeters can be either connected to medical gas outlets directly or attached on rail system and connected to the outlets by flexible hoses.



Flowmeters
L/min
Without Adaptor BS 5682 DIN 13260 NF 90116 DISS CHEMETRON OHMEDA
OXYGEN

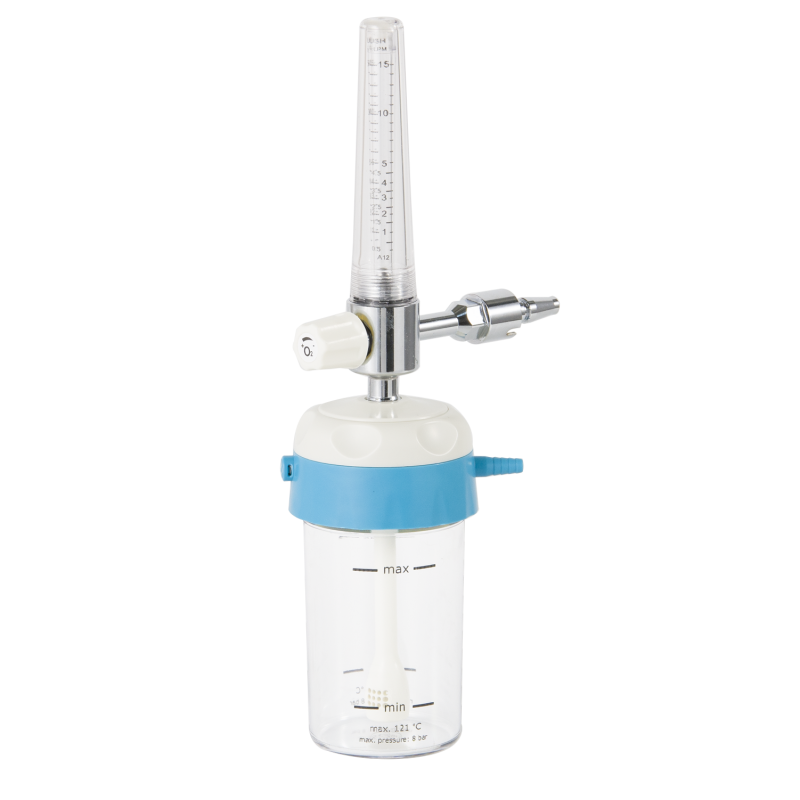

Wall Type FM20.11 FM20.21 FM20.31 FM21.41 FM20.51 FM20.61 FM20.71

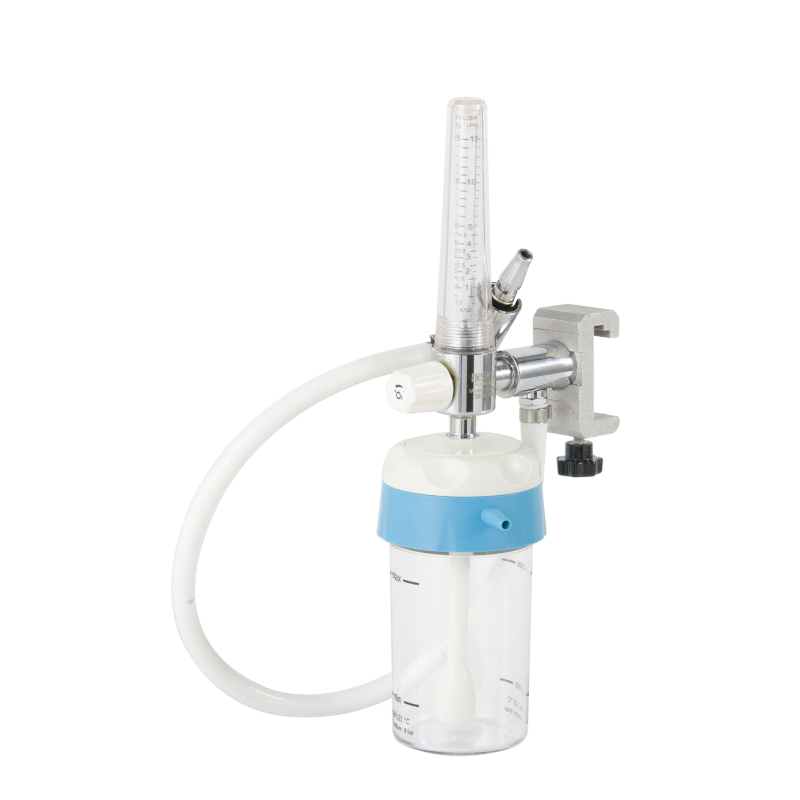

Rail Type FM20.12 FM20.22 FM20.32 FM21.42 FM20.51 FM20.62 FM20.72

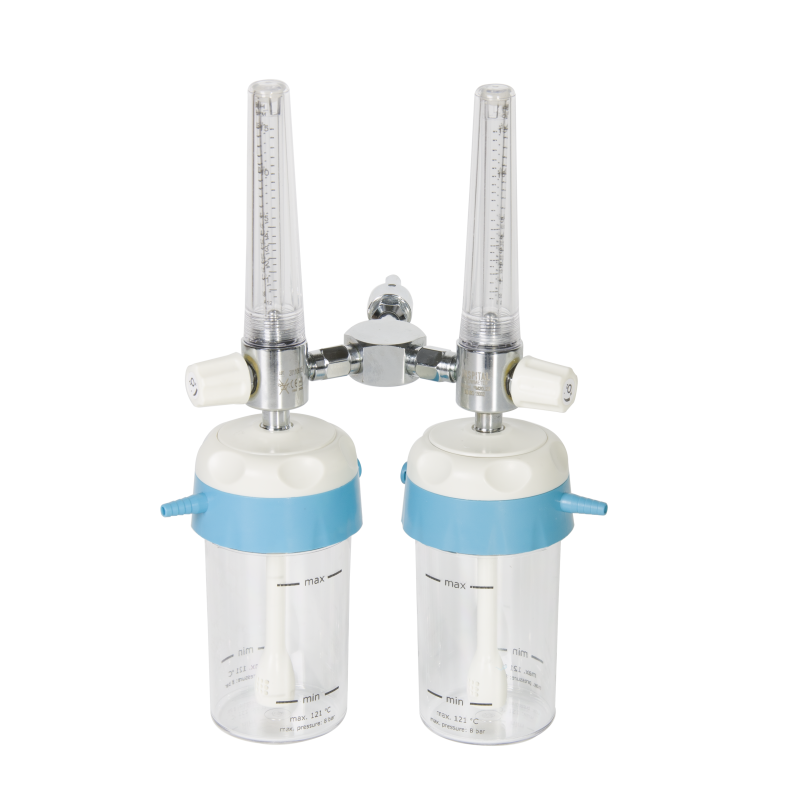

Dual wall type FM20.13 FM20.23 FM20.33 FM21.43 FM20.51 FM20.63 FM20.73
Dual rail type FM20.14 FM20.24 FM20.34 FM21.44 FM20.51 FM20.64 FM20.74
AIR
Wall Type FM20.15 FM20.25 FM20.35 FM21.45 FM20.52 FM20.65 FM20.75
Rail Type FM20.16 FM20.26 FM20.36 FM21.46 FM20.53 FM20.66 FM20.76
Dual wall type FM20.17 FM20.27 FM20.37 FM21.47 FM20.54 FM20.67 FM20.77
Dual rail type FM20.18 FM20.28 FM20.38 FM21.48 FM20.55 FM20.68 FM20.78



  • Size (LxWxH)    : 80x48x145 mm
  • Inlet                   :Withworth GAS 1/8"
  • Pressure            : 4.2 Kgs/cm² - 60 psi - 414 kPa
  • Flow Rate          : 0-15 L/min
  • Humidifier capacity  : 200 ml
