GZ71.09

Emergency Reserve Manifolds

Our experts are ready to offer you the most suitable solutions.

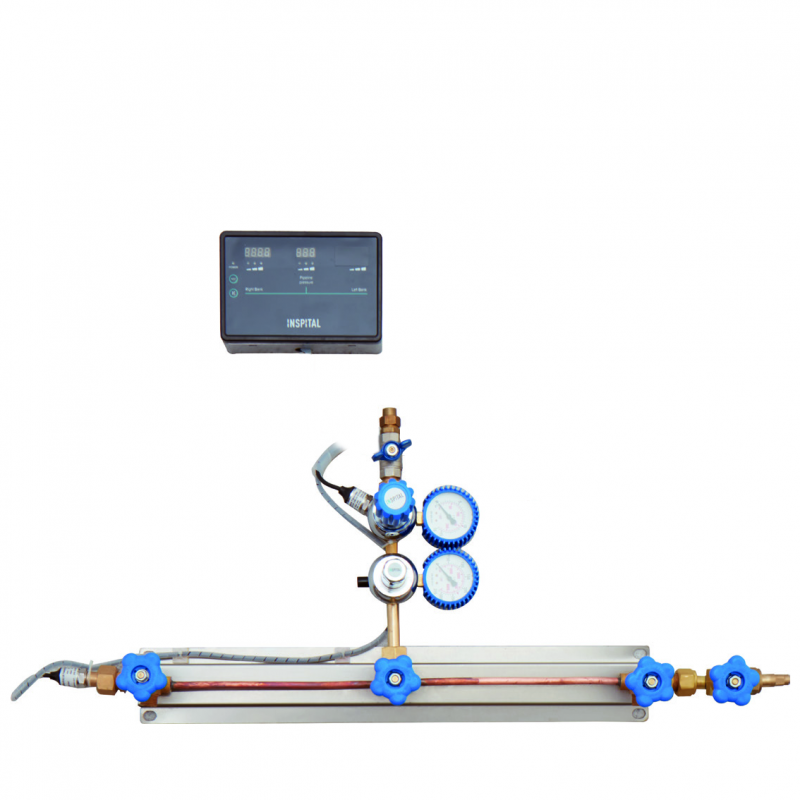

INSPITAL emergency reserve menifold includes a two stage regulation system, utilizing separate regulating units for each stage of pressure regulation, offers smooth & continous flow in case of an emergency.
Isolation valves are included at each manifold header connection to enable one cylinder bank is in use while the other bank is closed off during system operation, in compliance with HTM 02-01 standards.

Oxygen Station	Model No	GZ71.09	GZ71.08
Nitrousoxide Station	Model No	GZ71.18	GZ71.17
High Pressure Reducer 40 m³/h		1 pc	1 pc
Cylinder Fixing Chain		2 pcs	4 pcs
Flexible Connection Pipe		2 pcs	4 pcs
Discharge Valve		1 pc	1 pc
Cylinder Quantity on Station		2 pcs	4 pcs
Bed Quantity		5-10	8-12
Total Station Weight		15 kg	18 kg
